5-Axis Machining
Our 5 Axis Machining Services
With decades of unparalleled innovation and 5-axis CNC parts Machining experience, NOBLE has a competitive market in the manufacture of complex parts for ultra-precision 5-axis CNC machining. Our experienced team and professional intelligent manufacturing capabilities help to quickly design and manufacture complex, time-sensitive parts. NOBLE is your best choice, with a world-class precision 5-axis CNC parts Machining bid, which can help you reduce machine costs and provide complex parts quality.[Get Quote]
Our 5 Axis CNC Machining Capabilities
NOBLE's 5-axis machining services offer unparalleled speed and flexibility. With an extensive range of advanced 5-axis CNC machines and a long list of materials, NOBLE can deliver the best 5-axis machined parts. Our experienced team and manufacturing capabilities help rapidly design and fabricate complex, time-sensitive components. With world-class equipment, expertise, and experience, NOBLE uses two outstanding setups to provide precise, difficult parts.

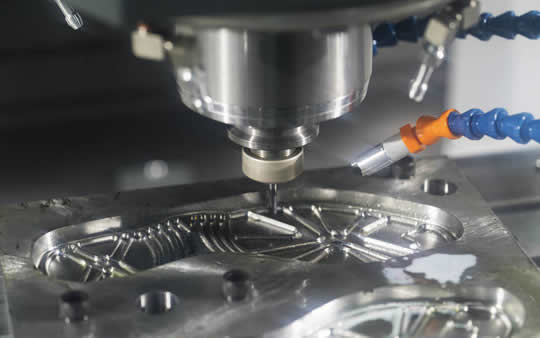

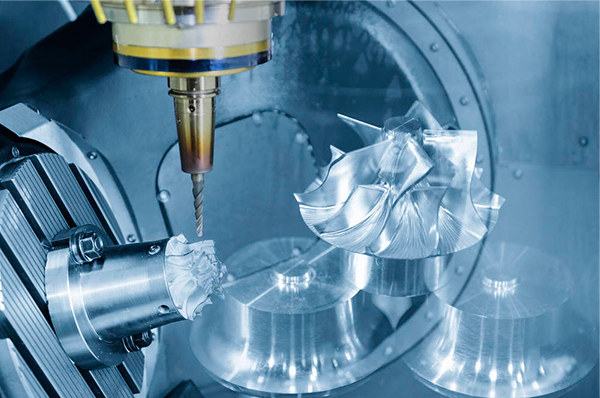

Simultaneous 5 Axis CNC Machining
Fast, effective, and continuous 5-axis CNC machining with improved transitioning and surface quality. Here, we use a 5-axis machining center that can continuously adjust the movements on all five axes without stopping. Our 5-axis CNC machining has intelligent functionalities to ensure efficient continuous processes and transitions.
3+2 Axis CNC Machining
Take advantage of the optimal 3+2 axis machining technology for your unique applications. The process keeps the part fixed in a specific orientation to allow the usual 3-axis machining process. Our 3+2 axis machining uses shorter, more rigid cutting tools to offer your parts better dimensional stability. Get complex CNC machined parts with tight tolerances at lower costs and cycle time.
Structure of A 5-axis CNC Machine
Rotary Spindle Head
Variable speed spindle holds rotating cutting tool which travels on the Y-axis (front to back) and spins on the B-axis.
Cutting Tool
Machine tools cut material from the workpiece to form a part - subtractive manufacturing.
Traveling Columns
The Z-axis (left to right) and X-axis (top to bottom) columns the rotary spindle head and tooling travel upon.
Main Spindle
Main chuck holding workpiece which rotates on the C-axis up to 2,500 RPMs and is able to travel on Z-axis.
Sub-Spindle
Secondary chuck holding workpiece which revolves on the C-axis up to 2,500 RPMs and is able to move on Z-axis.
CNC Control Panel
The interface a machinist uses to program and control how a computer numerical control machine operates.
Materials for Custom 5 Axis CNC Machining Services
NOBLE's 5-axis milling service is compatible with a variety of metal and plastic materials. Depending on your needs, you can choose from more than 50 types of 5-axis machining materials we offer at NOBLE. Please check our 5-axis CNC machining material table below. Of course, if you have special needs, please contact our sales staff by email in advance.

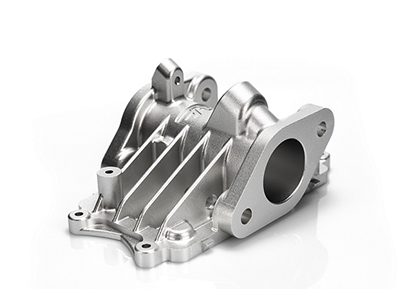

ALuminum
Aluminum is a highly ductile metal, making it easy to machining. The material has a good strength-to-weight ratio and is available in many types for a range of applications.
| Aluminum | |
| Price | $ |
| Lead Time | 3 days |
| Tolerances | ±0.01mm |
| Max part size | 200 x 80 x 100 cm |

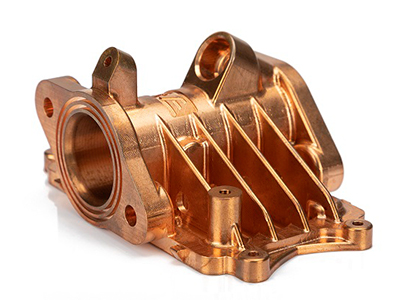

Copper
Copper displays excellent thermal conductivity, electrical conductivity and plasticity. It is also highly ductile, corrosion resistant and can be easily welded.
| Copper | |
| Wall Thickness | 0.75 mm |
| Lead Time | 3 days |
| Tolerances | ±0.01mm |
| Max part size | 200 x 80 x 100 cm |

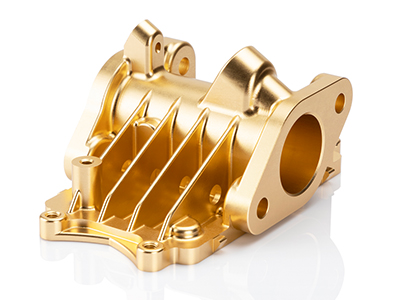

Brass
Brass has desirable properties for a number of applications. It is low friction, has excellent electrical conductivity and has a golden (brass) appearance.
| Brass | |
| Wall Thickness | 0.75 mm |
| Lead Time | 3 days |
| Tolerances | ±0.01mm |
| Max part size | 200 x 80 x 100 cm |
Stainless Steel
Stainless steel is the low carbon steel that offers many properties that are sought after for industrial applications. Stainless steel typically contains a minimum of 10% chromium by weight.
| Stainless Steel | |
| Wall Thickness | 0.75 mm |
| Lead Time | 3 days |
| Tolerances | ±0.01mm |
| Max part size | 200 x 80 x 100 cm |
Titanium
Titanium has a number of material properties that make it the ideal metal for demanding applications. These properties include excellent resistance to corrosion, chemicals and extreme temperatures. The metal also has an excellent strength-to-weight ratio.
| Titanium | |
| Wall Thickness | 0.75 mm |
| Lead Time | 3 days |
| Tolerances | ±0.01mm |
| Max part size | 200 x 80 x 100 cm |

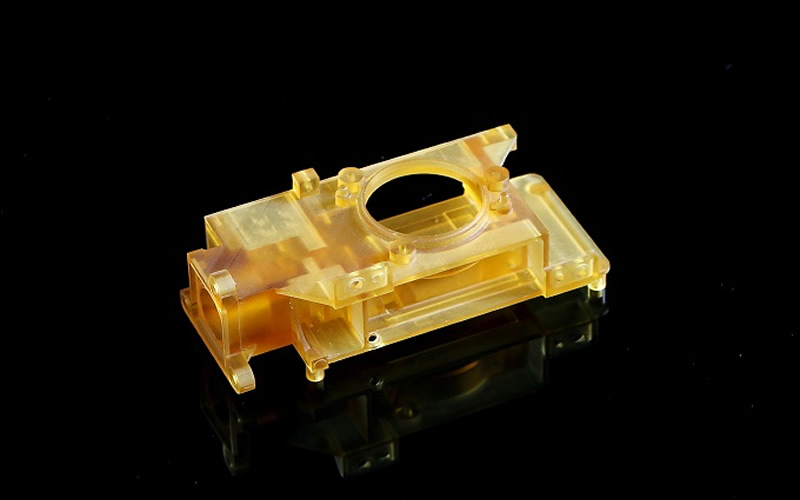

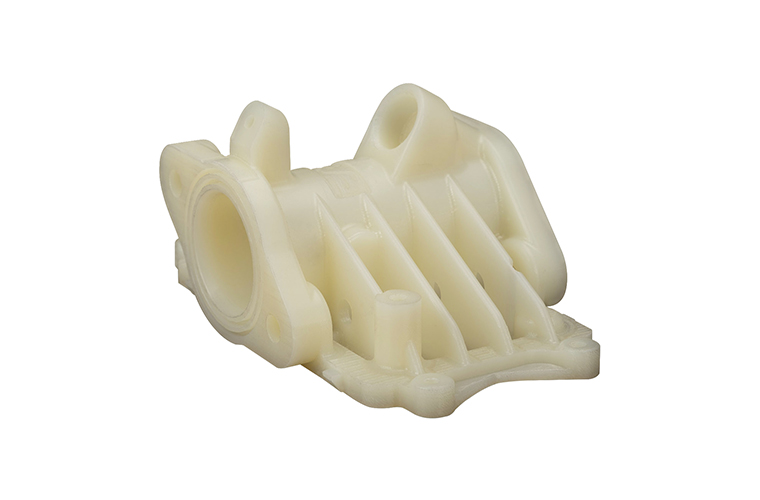

Plastics
Plastics are also a very popular option for CNC machining because of its wide choices, relatively lower price, and significantly faster machining time needed. We provide all common plastics for CNC machining services.
| Plastics | |
| Machinable Material Types | POM、HDPE、PET、Nylon、PTFE、PVC、 |
| Lead Time | 3 days |
| Tolerances | ±0.01mm |
| Max part size | 200 x 80 x 100 cm |
Magnesium
Magnesium is a silver-white metal with a density of 1.74 g/cm³. Its characteristics are small density, good ductility, high strength, large elastic modulus, good heat dissipation, good shock absorption, greater impact load capacity than aluminum alloy, and good corrosion resistance to organic substances and alkalis.
| Magnesium | |
| Wall Thickness | 0.75 mm |
| Lead Time | 3 days |
| Tolerances | ±0.01mm |
| Max part size | 200 x 80 x 100 cm |
Why Use 5-Axis CNC Machining
Producing components with higher precision
components are processed in a single setup without being moved through several workstations.
Improving productivity
additional axes and the splendid mobility of workpiece to tool rotational axes
Unmatched capabilities and preferable price
NOBLE has the latest 5-axis CNC machining technology and is equipped with a number of experienced milling personnel, which can effectively save time and cost, complete your complex and high-precision parts, and give certain CNC machining project support.
Upgrading the whole part quality
elaborate surface finishes are available.
Lowering cost and labor time
less part handling and multiple clamping phases
Fast cutting & Stablize
Boosting cutting speeds and decreasing tool vibrations
Surface Finishes for 5 Axis CNC Machining
Our ISO 9001-2015 and ISO13485-2016 certifications demonstrate that we manufacture 5-axis milled parts to the tightest tolerances. Our standard tolerances for CNC milling plastics are ISO-2768-m and ISO-2768-f for metals, resulting in high-quality and precision complex parts with superb dimensional stability.
| Standards | Metric Units | Imperial Units |
| Maximum Part Size | 300×200×100 mm | 11.8×7.7×3.9 in |
| Minimum Part Size | 4×4×4 mm | 0.1×0.1×0.1 in |
| Minimum Feature Size | Φ 0.50 mm | Φ 0.00197 in |
| Standard Tolerances | Metals: ISO 2768-f Plastics: ISO 2768-m | |
| Linear dimension | ±0.025 mm | ±0.001 in |
| Hole diameters | ±0.025 mm | ±0.001 in |
| Shaft diameters | ±0.025 mm | ±0.001 in |
| Edge Condition | Sharp corner will be removed in the form of a chamfer or radius. The size of the chamfer, or resulting radii, must be indicated on the drawing. | |
| Threads and Tapped Holes | Standard size: Diameter: standard drill bit sizes; depth: 4×diameter Maximum size: Diameter: Φ 1 mm; depth: 10×diameter NOBLE can produce threads of any specification and size required by our customers. | |
| Text | For plastic and soft materials: minimum width of 0.457 mm, depth of 0.3 mm For hard material: minimum width of 0.838 mm, depth of 0.3 mm For plastic and soft materials: minimum width of 0.018 in., depth of 0.011 inch For hard material: minimum width of 0.033 in., depth of 0.011 inch | |
| Lead Time | 7 business days for less than 80 parts | |
Why Choose NOBLE 5 Axis CNC Machining Service
NOBLE combines first-class precision parts processing technology and excellent high-quality CNC processing services. Choose our premium 5-axis machining services to advance your CNC machining projects. Our experienced and skilled engineers use the most advanced milling machine technology to complete the high-precision reproduction of complex parts to ensure that you can receive details ahead of time and complete your CNC machining projects.
Continuous firm high precision
We manufacture prototypes and low-volume production parts at high precision. Our CNC 5-axis milling services can achieve standard tolerances of +/- 0.05mm. However, we can also reach tighter tolerances of up to +/- 0.01mm.
Professional 5-axis CNC machining machinists and team
NOBLE has a leading domestic brand of 5-axis processing machines, equipped with a number of experienced professional machinists who use advanced 5-axis processing technology to complete your complex spare parts.
Unmatched capabilities and preferable price
NOBLE has the latest 5-axis CNC machining technology and is equipped with a number of experienced milling personnel, which can effectively save time and cost, complete your complex and high-precision parts, and give certain CNC machining project support.
Handle Complex Design
Our machining centers can machine intricate parts with complex geometric features. With comprehensive material knowledge and 5-axis machining capabilities, we can manufacture components to meet your unique demands.
High Production Speed
We boast a machine shop with 5-axis machining centers in-house. This capacity helps us create prototypes and low-volume production parts in days. Our simultaneous 5-axis machining allows continuous machining without stoppage, thereby ensuring faster production.
24/7 Engineering Support
NOBLE provides experienced engineers to answer all your 5-axis CNC machining service questions. Our expert engineer support provides on-site one-stop 5-axis CNC service support and can help you complete your CNC machining projects efficiently and quickly.
Work with Us in 4 Simple Steps Only
With many years of manufacturing experience, NOBLE offers the best solutions for all rapid prototyping and low-volume manufacturing needs. We streamline the innovation cycle into four simple but effective steps.
Upload Your Design
Just simply upload your CAD filesand submit RFQs with clear infor-mation online.
Receive Design Analysis
We'll send you design for manufa-cturability analysis and transparent pricing.
Start Manufacturing
Our experts will produce your parts with the required technologies and materials.
Receive Your Parts
Your parts will be delivered to your door directly with stringent deadlines.

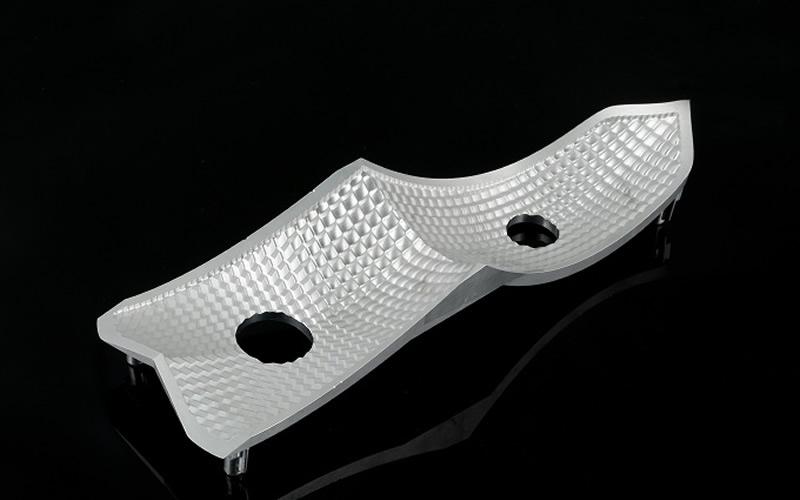

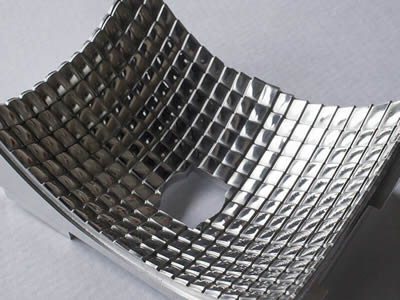

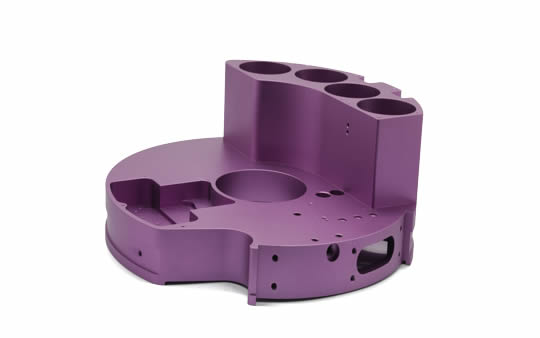

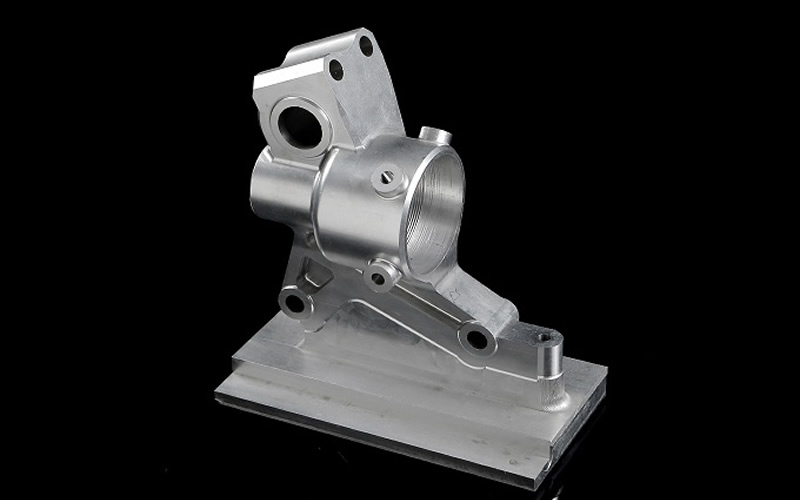

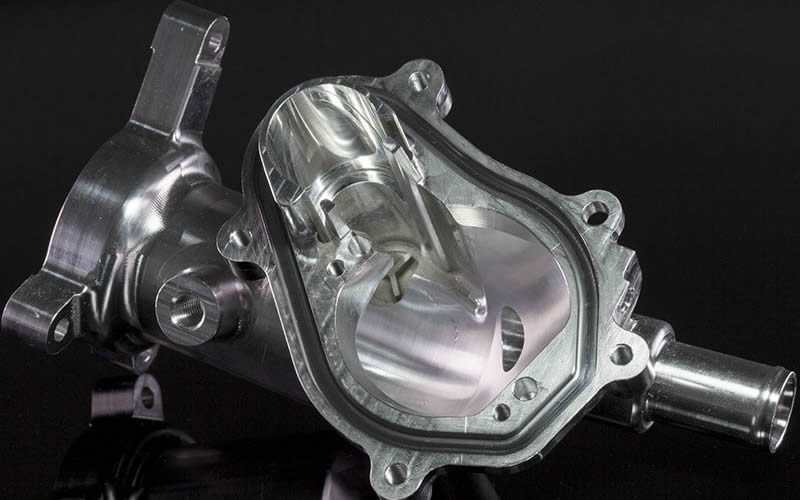

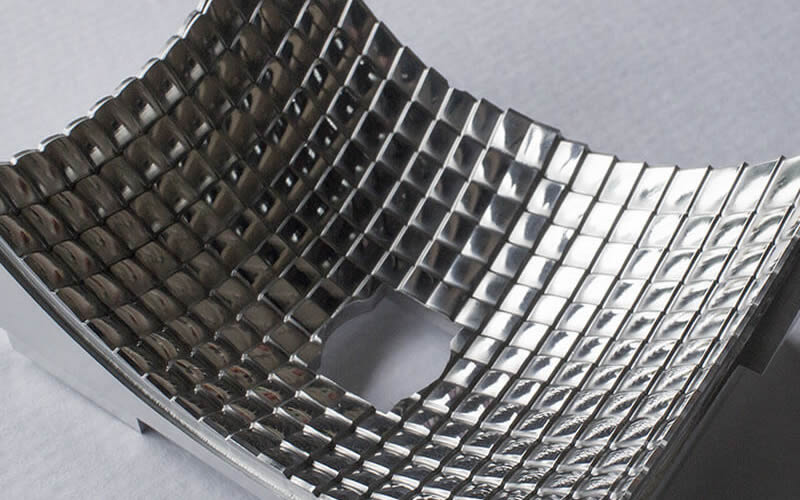

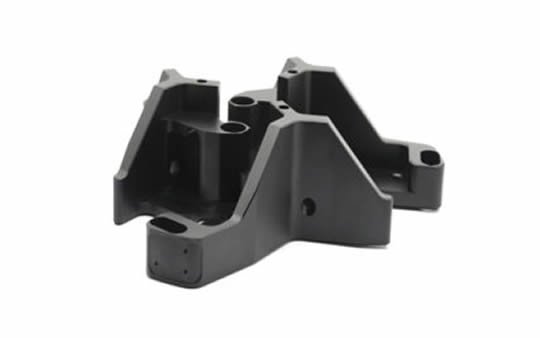

5 Axis CNC Machining Parts Display
Please look at our 5-axis CNC machined parts from over a decade, showcasing precision 5-axis CNC machined prototypes and pieces from our valued customers.
See What Our Customers Say About Us
Mark Alford ---- Chief Engineer
From the instant and accurate quotation to the production process to the timely delivery of parts, NOBLE responded to our demands with complete professionalism.They handled every aspect of this CNC machining project quickly and cost-effectively.We will surely work with them again in the future.
Luc Szorc---Mechanical Engineer
Hi, Kevin. I'd like to thank you and everybody at NOBLE for contributing to the great service we received. You constantly handle our difficult CNC machining projects, and offer instant quotation and free DFM analysis for the part design. Best of all, you show superior quality in short lead times. Our department supervisor confirmed that you will continue making these parts now. The quality is outstanding!
Hari Mackenzie ---- Engineer
We asked NOBLE to fabricate parts for a critical supplier demo, and you came through with a short lead time.Your work is always high quality, and we are grateful for your precision in machining components.The help in checking our designs and material selection has also saved our company from making expensive errors.We look forward to doing future projects with you guys.
Raymond---Design Manager
Parts arrived for us today. Such beautiful milled parts mate! Our team assemble the parts earlier,which goes smoothly. Parts are as precise as we expected. Please pass my thanks to your production team, They are doing a great job! I am so glad that we found you guys online and eventually ordered from you guys. We are going to send you more CNC milling projects for quote soon.
Applications of 5 Axis Machining
Because the milling can achieve a high precision without changing the material structure with good manufacturing speed, it is becoming growing common as the range of machines, control systems and tools for CNC milling continues to expand. Our CNC milled parts can be found in all areas of the industry, including:

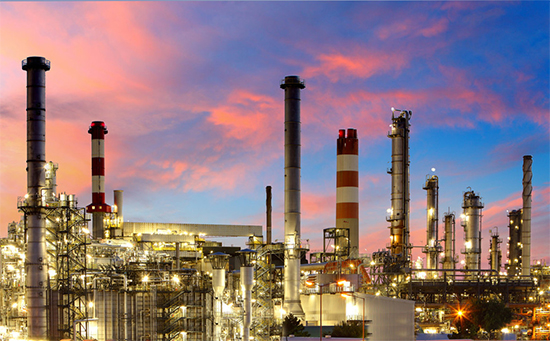

Oil & Gas
Experts at NOBLE master the comprehensive knowledge of CNC machining for the oil field and gas industry paired with the assurance of high precision offered by top-notch CNC machines.
Tool & Die
NOBLE may be your best choice whether you need precision lathe work or multi-axis CNC milling for high-quality tools and dies to accurately function in the machinery.

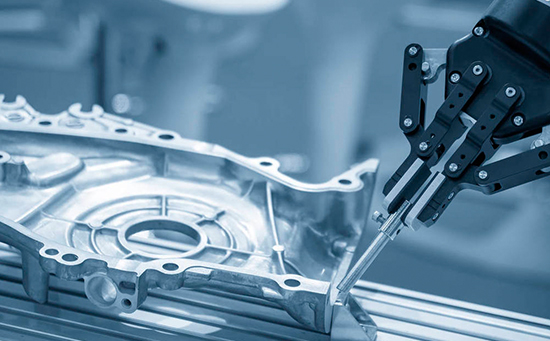

Automotive
Our low-volume manufacturing services is the ideal manufacturing solution for on demand automotive parts.

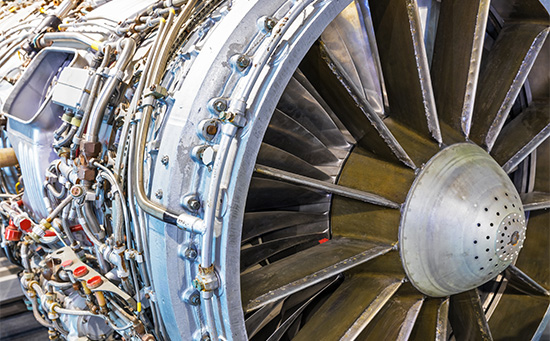

Aerospace
The durability and precision that our precision manufacturing services provide meets the sophisticated needs the different phases of the aerospace industry required.

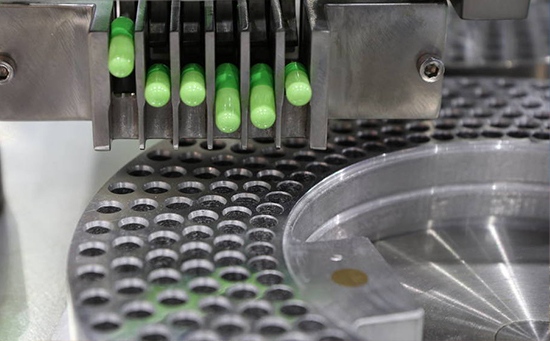

Medical Devices
Medical supplies manufacturers, tech startups, and research labs benefit significantly from the prototyping solutions we provide.
Robotics
Our industrial-grade robotics prototyping and parts manufacturing services aid in the continuous evolution of the robotics market.
Want to get the most professional and fastest service for your CNC machining project? Upload your CAD files now and obtain a quote![Get Quote]
5 Axis CNC Machining FAQs
- Q
What is the difference between 3-axis and 5-axis CNC machining?
AThe main difference is the fixturing and setup time. 3-axis machines work on 3 axes and 5-axis machines work on 5 axes. By using a 5-axis machine over a 3-axis machine, cycle time is remarkably reduced, decreasing it by more than 1/3rd.
To know more details about 3-axis, 4-axis, and 5-axis CNC milling, you can read our guide on Differences between 3-, 4-, and 5-Axis CNC Machining to help you choose the best suitable one for your CNC machining project.
- Q
What are the advantages of 5-axis CNC machining?
AFewer machines involved and reduced part handling, and setups;
Highly engineered and complex part machining;
Create complex part geometry in one setup;
Increased part precision;
Custom design for manufacture;
Producing overall parts on demand;
Reduction of costly workpiece fixtures and tooling redundancy;
Conducive to unattended operations – single point load / unload;
Go all the way – Gear cutting, hobbing, and skiving;
Less ancillary equipment needed – gages and tools;
Improved documentation and traceability – done-in-one.
- Q
When should I choose 5-axis CNC machining?
AThe flexibility of 5-axis CNC machining allows the creation of complex components with complex shapes and geometrical details. The stability of the machining tool also gives more consistent and smoother surface finishes. Therefore, you should choose 5-axis machining whenever you need to produce complex parts with tight tolerances.
- Q
What’s the maximum part size for 5-axis CNC machining?
AOur 5-axis milling machines can accommodate a length of 42 inches bar stock. This allows us to work on a wide range of projects for various applications.
- Q
How much does your CNC machining service cost?
AThe cost of your CNC machining projects is not fixed as it depends on the characteristics of your project, such as the design, and tolerances. Machining times of the material to be used in the project also contribute to this pricing.
